BSA Portable PcP Electric Compressor
599.00
499.00

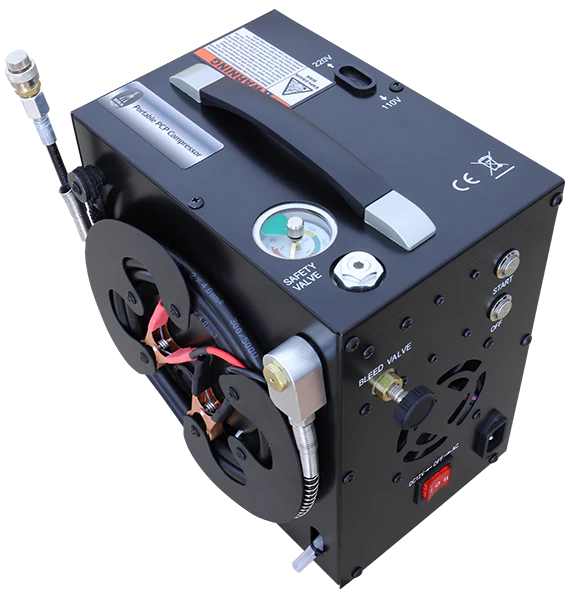

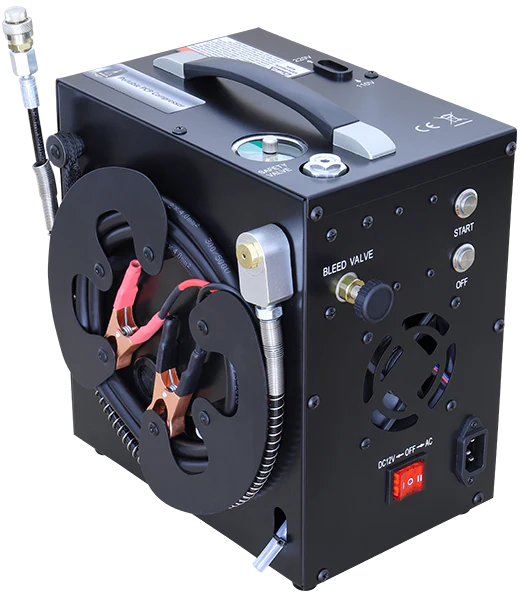

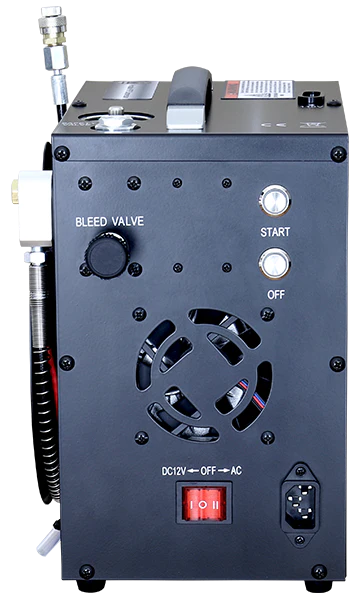

BSA PORTABLE PCP ELECTRIC COMPRESSOR

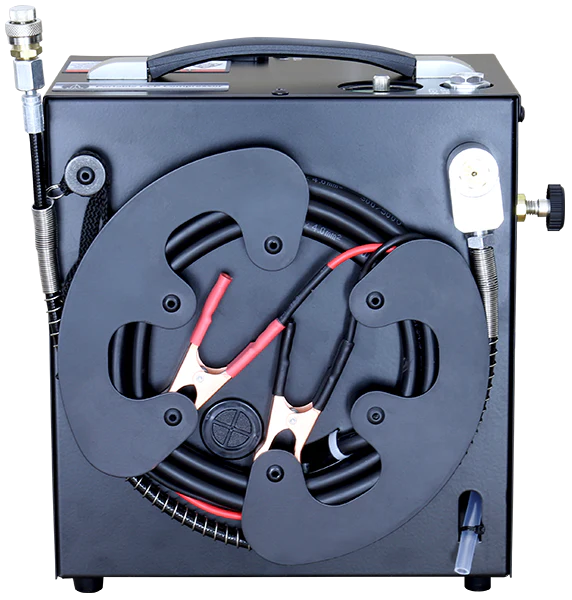

The BSA electric compressor comes with a 240v power lead and plug allowing it to be used from a domestic socket or alternatively it has jump lead style crocodile grips to connect it to a standard car battery. All you need to do is plug it into your PCP and power it on. It also has a gauge that can be set to the desired fill volume and it will automatically turn itself off preventing over filling. A spares kit is also provided in the box. Our standard filler probes can be used via a quick fill.
- Dual power supply: Operates on AC (220V / 110V) or DC (12V), controlled via a change-over switch
- High & low pressure capability:
- High pressure: 0–320 bar
- Low pressure: 0–20 MPa
- Automatic shutdown ensures accurate and consistent PCP filling
- Durable performance: Long service life with minimal maintenance
- Oil-free & water-free: No lubrication or cooling water required
- User friendly: Compact, easy to use and carry
- Quiet operation:Low sound and vibration levels
- Integrated filtration:Built-in oil and water separator
- Patented technology
Specification
- Weight: 10kg
- Dimensions: H: 300mm, W: 300mm, D: 200mm
- Fill Line: 500mm with Foster QD fitting (QD adapter required for threaded probes)
- Power: 240v mains or 12v DC car battery (cables included)
- Maximum Pressure: 300BAR
- Filling Time:
- 0.3L cylinder: 6-7 minutes (200BAR to 300BAR)
- 0.3L cylinder: 18-20 minutes (0BAR to 300BAR)
- Cooling System: Air-cooled with water trap and manual bleed system
A full review can be found here by following the link to YouTube:
For further information, please telephone 01458 270024 or email [email protected]
Product Enquiry
Manufacturer: BSA
Model: BSA PORTABLE PCP ELECTRIC COMPRESSOR
Stock Number: 20851
